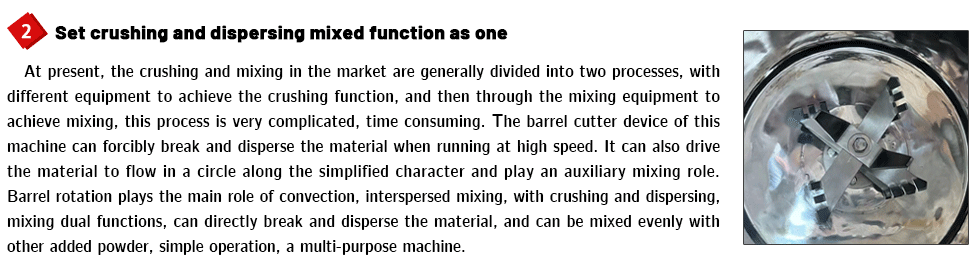

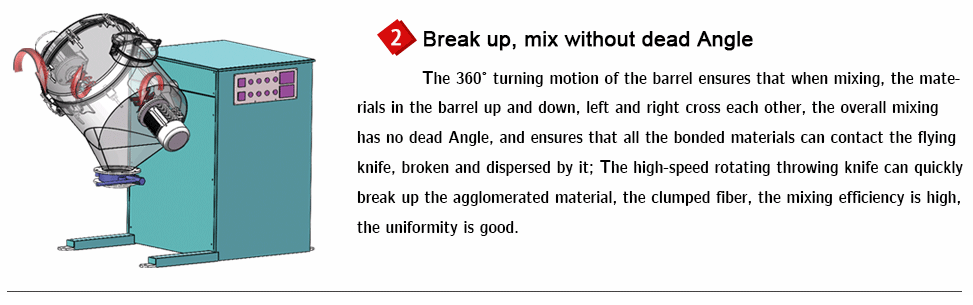

Barrel 360 ° flip movement, with three-dimensional movement, so that the material from the aggregation to the dispersion state and mixed with each other, mixing without dead ends; barrel set high-speed rotating flying knife, directly driven by the motor, adjustable speed frequency, forced shear, dispersion of materials, mixing and crushing process into one.
Product introduction
—?Innovative process, efficient mixing?—

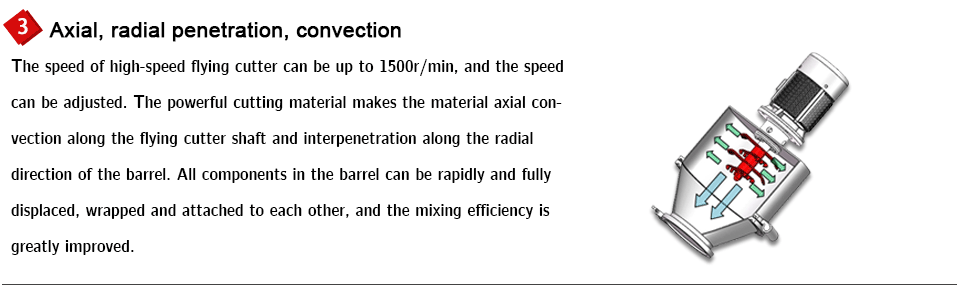

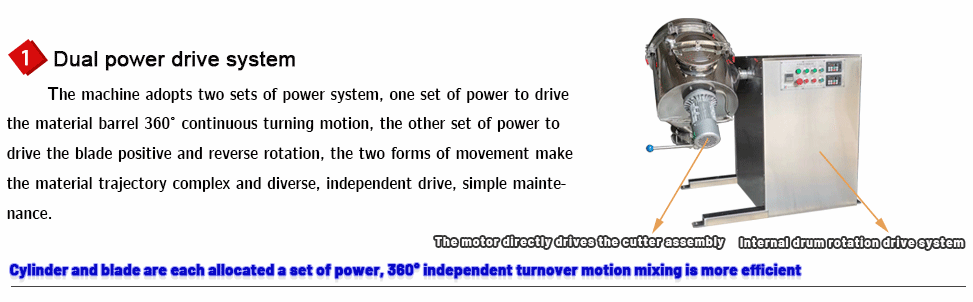

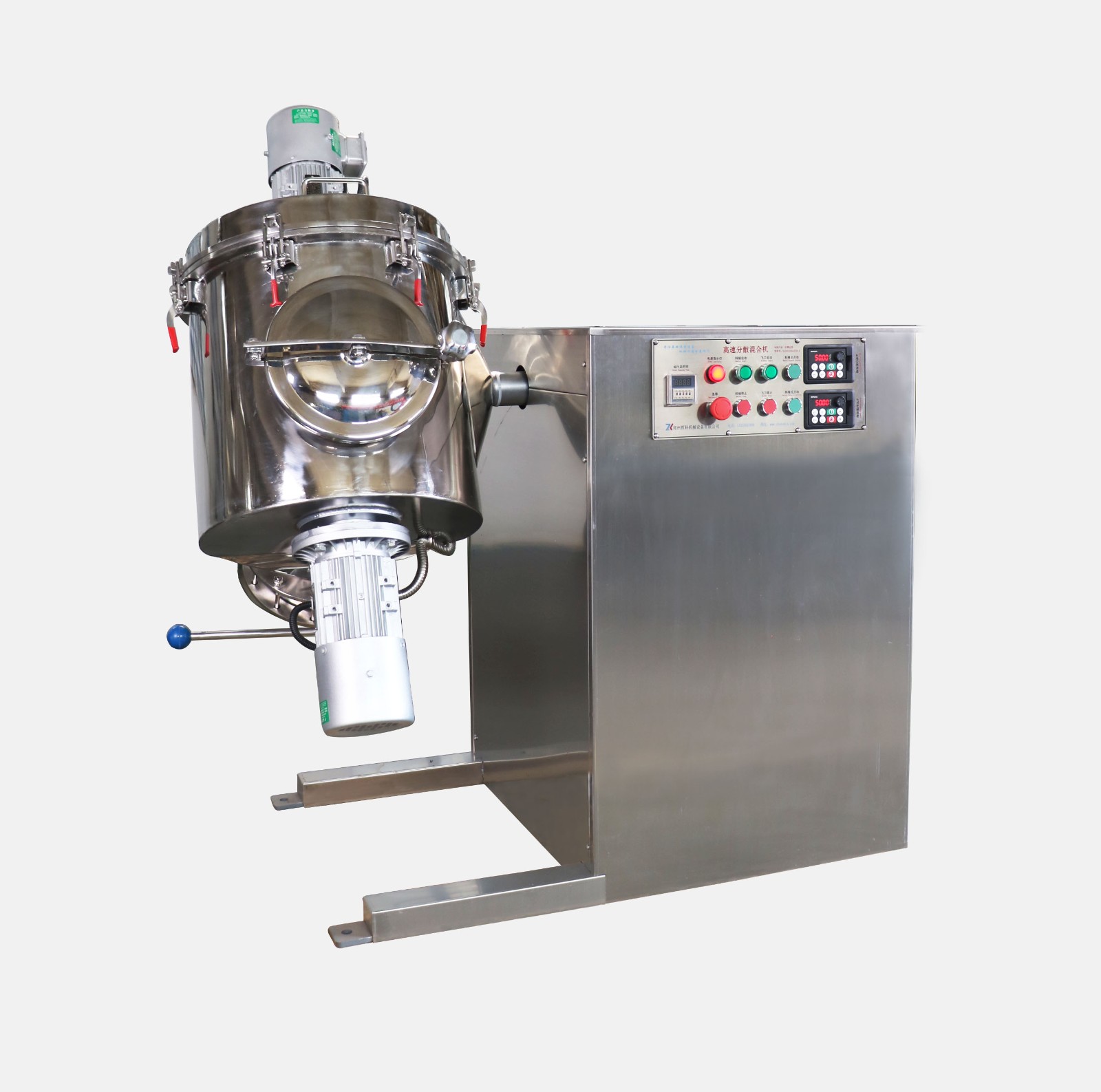

MG type high speed dispersion dual power mixer, a new type, high efficiency powder mixing equipment. The moving parts are mainly driven by the power to rotate the barrel, and the power installed on the barrel drives the high-speed rotation of the tool blade group inside the barrel. The rotation of the cylinder makes the internal materials tumble up and down and convective from left to right. At the same time, the cutter assembly rotates at a high speed to cut and break the scattered materials. The materials can be mixed evenly in a short time.
MG type high speed dispersion dual power mixer features
1. High-speed flying knife can quickly and effectively break up all kinds of bound particles and viscous particles, and break up the flocculent fibers in the powder so that mixing can be carried out incidentally.
2. Single motor has only one moving part, which is durable and easy to maintain.

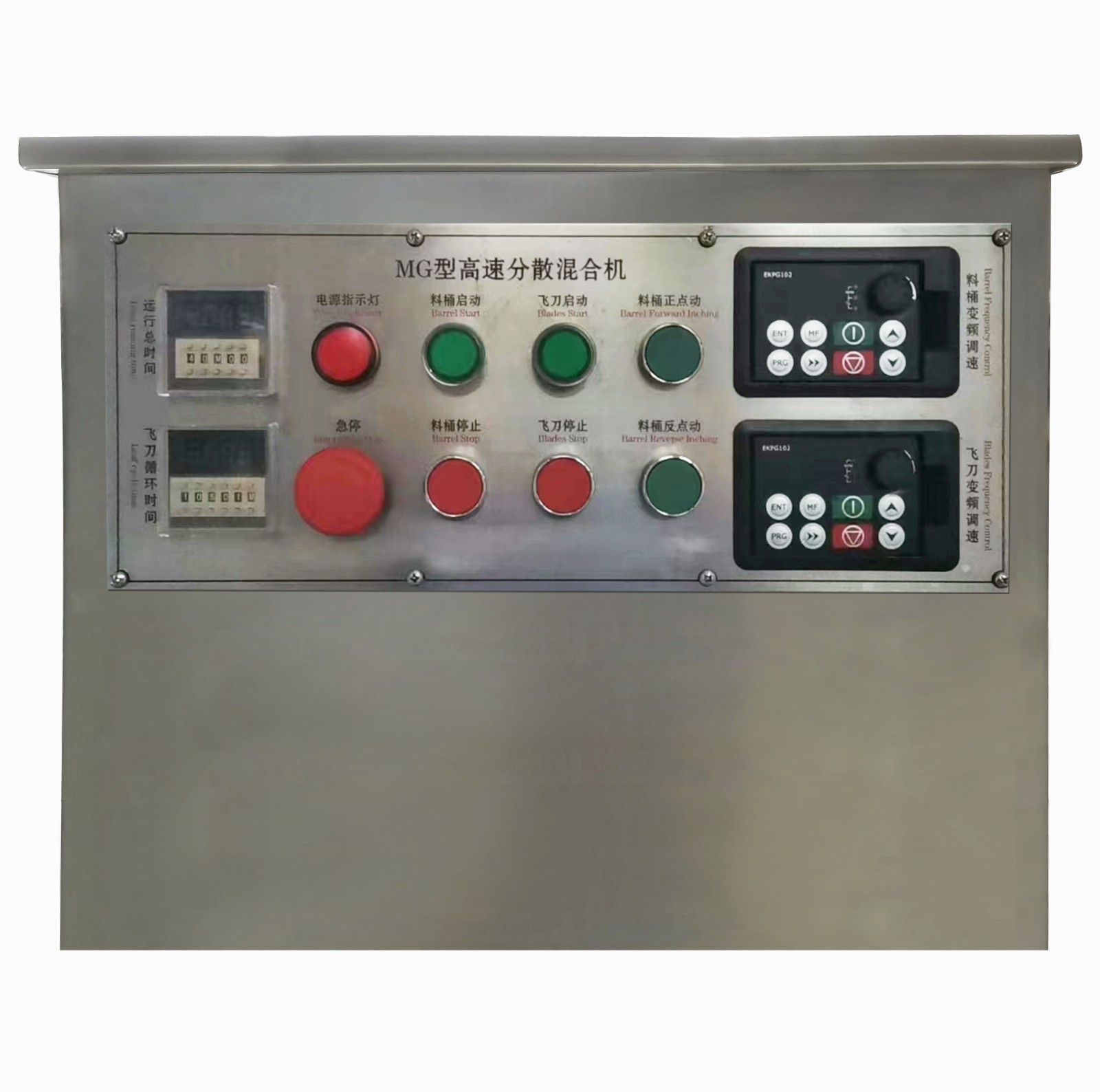

3. Double frequency control for cylinder and cutter set. According to different material characteristics, the best mixing and crushing effect can be achieved by adjusting the speed.

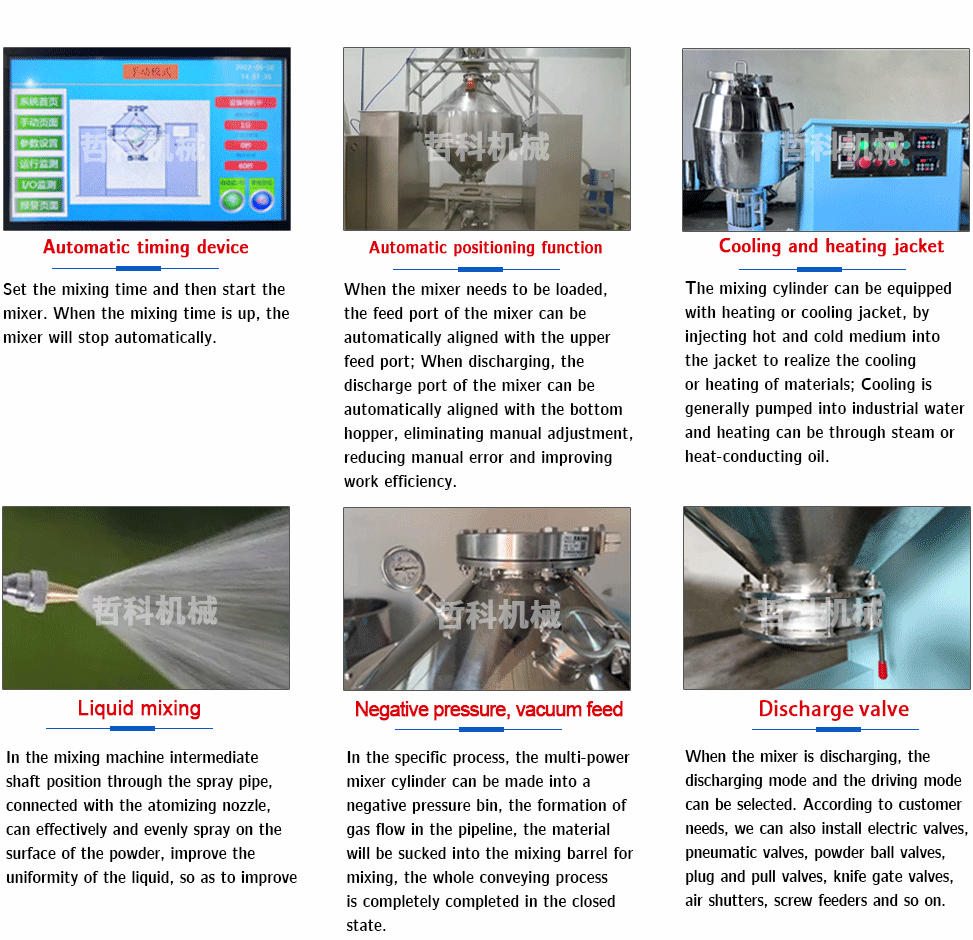

4. Double timer to record the total mixing time and the positive and reverse rotation time of the cutter set.

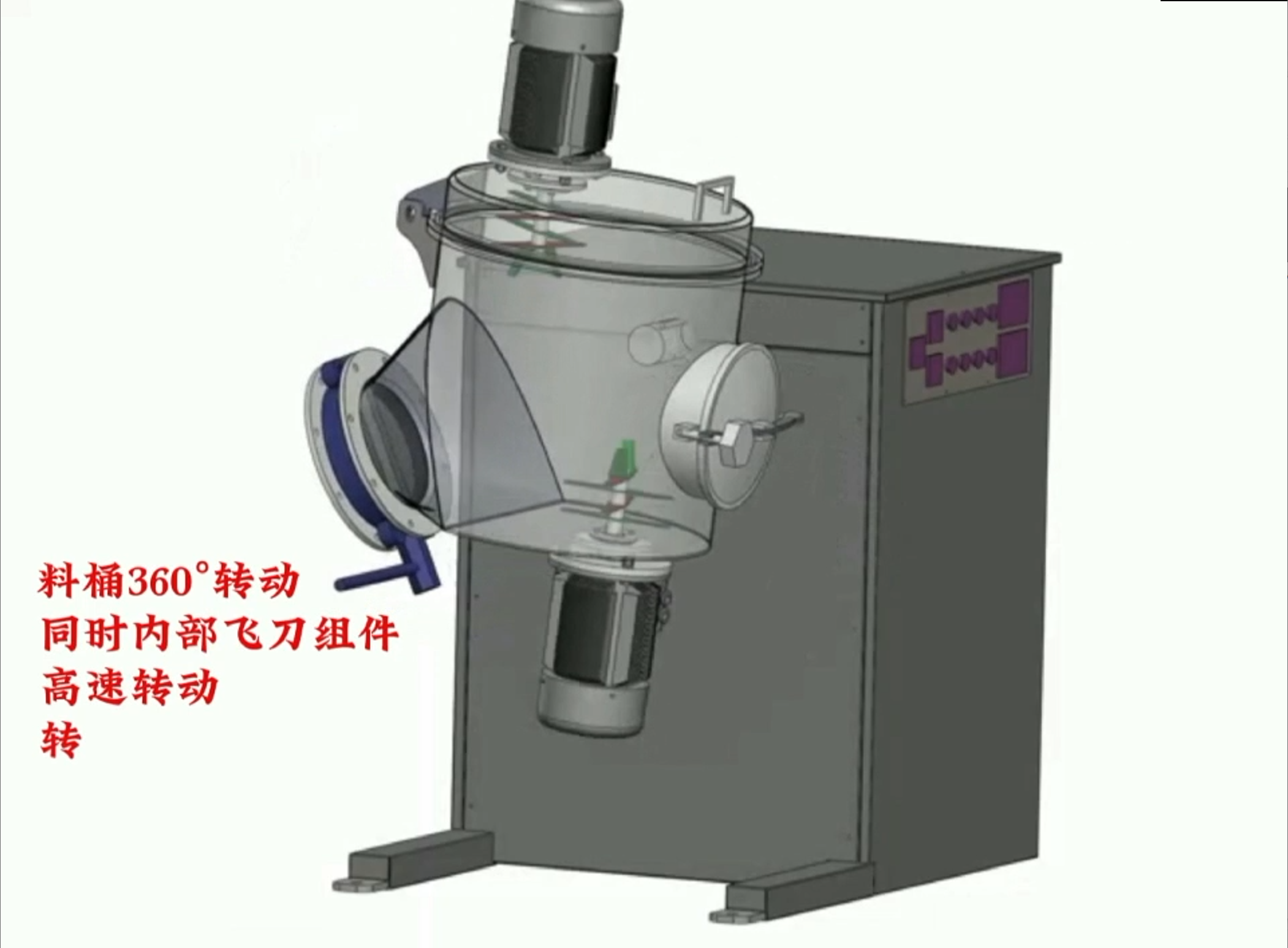

Structural diagram
—?Multiple power, higher efficiency?—
Product characteristics
—?Make with ingenuity and do a good job of each product—

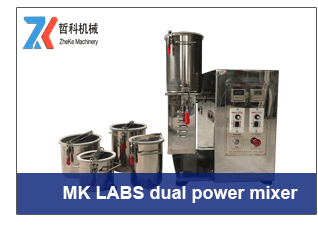

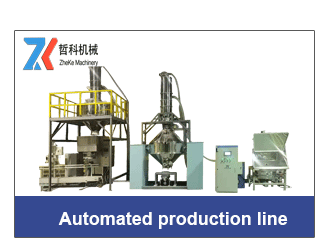

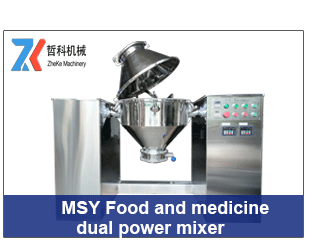

Related products
Our advantage
—?Quality assurance, high efficiency and uniformity—

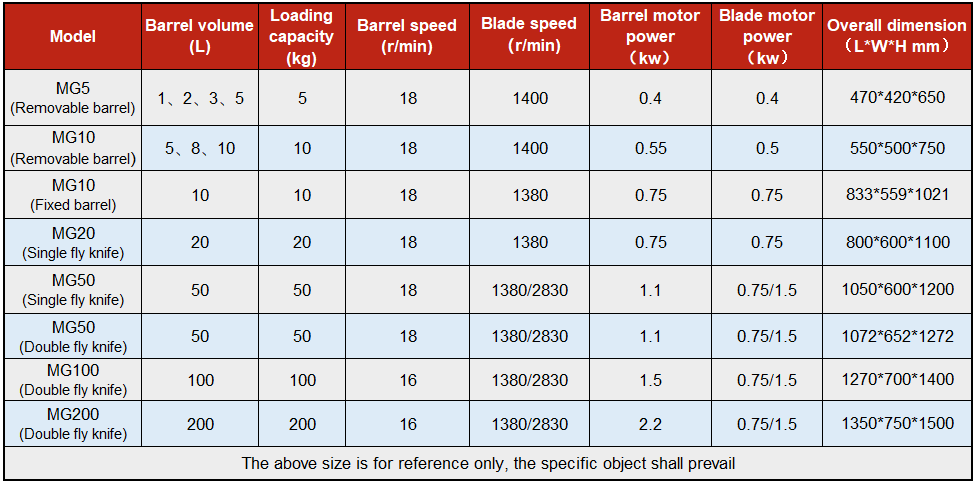

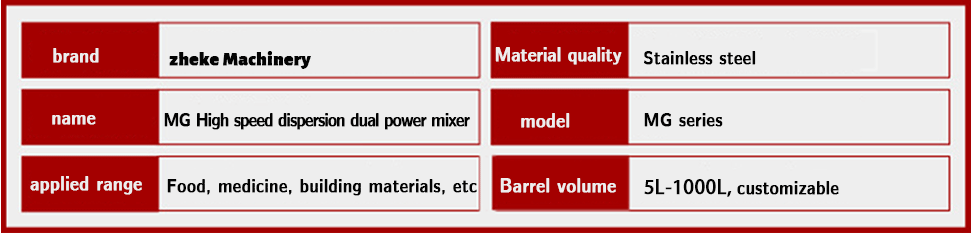

Product parameter
—customized, complete specifications—

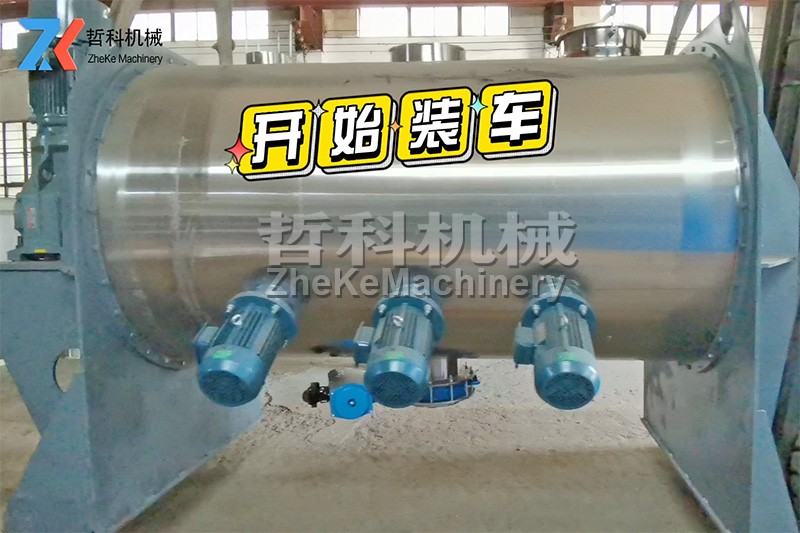

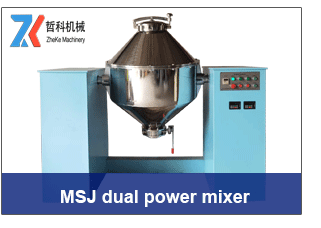

Matching products
—?Customized to meet various needs?—
